Jacket Ball Valves

Features

Size: 1/2"~8"
Class: 150 / 300 Lb
Unibody Cast Steel Body
Floating Ball, Full Bore
Anti-Static Device
Blow-out Proof Stem
Fire Safe Design
Emergency Sealant Injector

Materials

Materials of Jacket Ball Valves
Materials of Jacket Ball Valves

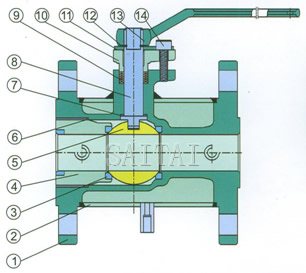

No. Part Material
1 Body A216-WCB A352-LCB A351-CF8, CF8M, CF3, CF3M, Duplex
2 Jacket 1015 Stainless Steel
3 Seat PTFE RTPFE PEEK PPL
4 Screwed Cover A216-WCB A352-LCB A351-CF8, CF8M, CF3, CF3M, Duplex
5 Ball A351-CF8, CF8M, CF3, CF3M, Duplex
6 Gasket PTFE Graphite
7 Thrust Washer PTFE
8 Stem ASTM A105+ENP A182-F6, F316, F316L, F304L,17-4PH, F51
9 Packing PTFE Graphite
10 Gland Flange A216-WCB A351-CF8
11 Limited Plate 1015+Cr. Carbon Steel+Cr.
12 Retainer Carbon Steel
13 Lever A216-WCB
14 Screw ASTM A193-B7, B8
No. Accessory name Material
ASTM
1 Jacket A105
2 Seat A216-WCB
3 Body A105
4 Sealing Ring PTFE, Counterpoint polyphony
5 Ball
6 Stem A247-410
7 Stuffing Graphite
8 Gland A216-WCB

ASME Pressure Class 150 / 300 Lb-Unibody-PTFE RTPFE PEEK PPL (Soft) Seated
Flanged Ends-Forged-Floating-Full Bore-Jacket-Dimensions and Weights

Dimensions and Weights of Jacket Ball Valves
Size d A D E Q H W P
in mm mm mm in mm mm mm in
1/2 14 110 1-1/2 58.5 147 101 170 3/4
3/4 19 117 1-1/2 58.5 147 101 170 3/4
1 25 127 2 62.5 156 106 170 3/4
1-1/2 38 165 2-1/2 63.5 181 125 250 3/4
2 51 178 3 68 218 135 250 3/4
3 76 229 6 82 275 193 350 3/4
4 102 254 8 83 300 265 420 3/4
6 152 292 10 95 403 355 100 3/4
8 203 330 12 100 492 410 1300 3/4
