Standard Chemical Pump

I Summary For Standard Chemical Pump

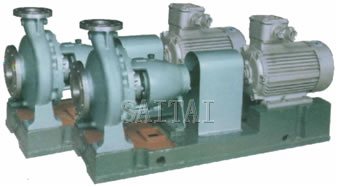

Standard Chemical Pump
Standard Chemical Pump

The standard chemical pump of Model-CZ series is a horizontal, single Cstage, and single- suction centrifugal pump its size and property conform to the DIN24256/ISO2858 standard.CZ standard chemical pump of Model-Z series have all those properties of the standard chemical pump of Model-IH series, its efficiency and cavitations property are be titer, and it is alternative with the latter. Usage it is used for transmission of low or high temperature liquids, neutral or corrosive liquids, clean or solid-granular-containing liquids.
It is especially suitable for: Chemical and petrochemical industries Oil refinery plants Paper mills and paper pulp industries. Coating industry(processes of degreasing, phosphatization, electrophoresis, etc.)

II Performance For Standard Chemical Pump

Capacity(Q)
(subject to the operation speed, refer to the diagram of properties in page 2)
2000m3/h		 Head(H) 160m
Operation pressure(P) 2.5MPa Operation temperature(t)-80℃~+300℃
Its characteristics survey is even, its value of cavitations is low,
and it has high efficiency and maintains these properties even if not fully loaded.

III Property Parameters Table For Standard Chemical Pump

Model Impeller type speed n=2900r/min
Capacity Q
M3/h		 Head H
m		 NPSH m Efficency % Density=1 Density=1.35 Density=1.84
motor power or model
kw   kw   kw
CZ32-160 A 20 36 3.1 62 4 Y112M-2 5.5 Y132S1-2 7.5 Y132S2-2
B 18 32 4 Y112M-2 5.5 Y132S1-2 7.5 Y132S2-2
C 17 28 3 Y100L-2 4 Y112M-2 5.5 Y132S1-2
D 15 20 2.2 Y90L-2 3 Y100L-2 4 Y112M-2
E 13 14
CZ32-200 A 20 50 2.7 51 7.5 Y132S2-2 11 Y160M1-2 15 Y160M2-2
B 18 48 11 Y160M1-2
C 16 40 5.5 Y132S1-2 7.5 Y132S2-2
D 15 30 4 Y112M-2 5.5 Y132S1-2 7.5 Y132S2-2
CZ32-250 A 20 85 2.1 40 15 Y160M2-2 18.5 Y160L-2 30 Y200L1-2
B 20 75
C 18 65 11 Y160M1-2 15 Y160M2-2 18.5 Y160L-2
D 15 50 7.5 Y132S2-2 11 Y160M1-2 15 Y160M2-2
CZ40-160 A 30 34 1.5 63 7.5 Y132S2-2 11 Y160M1-2 15 Y160M2-2
B 28 30 5.5 Y132S1-2 7.5 Y132S2-2 11 Y160M1-2
C 16 26 5.5 Y132S1-2 7.5 Y132S2-2
D 14 18 3 Y100L-2 5.5 Y132S1-2
CZ40-200 A 34 50 2.4 60 11 Y160M1-2 15 Y160M2-2 18.5 Y160L-2
B 30 48 7.5 Y132S2-2 11 Y160M1-2 15 Y160M2-2
C 26 38 5.5 Y132S1-2 7.5 Y132S2-2 11 Y160M1-2
D 22 30
1
CZ40-250 A 36 85 6 50 22 Y180M-2 30 Y200L1-2 45 Y225M-2
B 34 80 18.5 Y160L-2 22 Y180M-2 37 Y200L2-2
C 30 65 15 Y160M2-2 18.5 Y160L-2 30 Y200L1-2
D 26 50 11 Y160M1-2 15 Y160M2-2 18.5 Y160L-2
CZ40-315 A 46 140 4 50 45 Y225M-2 55 Y250M-2 75 Y280S-2
B 44 130 37 Y200L2-2 45 Y225M-2 75 Y280S-4
C 40 100 30 Y200L1-2 37 Y200L2-2 55 Y250M-2
D 34 80 30 Y200L1-2 37 Y200L2-2
CZ50-160 A 55 34 2.9 73 11 Y160M1-2 11 Y160M1-2 15 Y160L2-2
B 50 30 7.5 Y132S2-2
C 46 26 5.5 Y132S1-2 7.5 Y132S2-2 11 Y160M1-2
D 40 18 5.5 Y132S1-2 7.5 Y132S2-2
CZ50-200 A 65 56 4 72 18.5 Y160L-2 22 Y180M-2 45 Y225S-2
B 65 50 15 Y160M2-2 18.5 Y160L-2 37 Y200L2-2
C 50 40 11 Y160M1-2 15 Y160M2-2 18.5 Y160L-2
D 40 32 7.5 Y132S2-2 11 Y160M1-2 15 Y160M2-2
CZ50-250 A 65 85 3 64 30 Y200L1-2 37 Y200L2-2 45 Y225M-2
B 60 80 45 Y225M-2
C 55 65 22 Y160M-2 30 Y200L1-2 37 Y200L2-2
D 45 50 15 Y160M2-2 15 Y160M2-2 22 Y180M-2
CZ50-315 A 80 140 5 60 75 Y280S-2 90 Y280M-2 110 Y315S-2
B 75 135 55 Y250M-2 75 Y280S-2 110 Y315S-2
C 70 110 45 Y225M-2 90 Y280M-2
D 65 85 37 Y200L2-2 45 Y225M-2 75 Y280S-2
Model Impeller type speed n=2900r/min
Capacity Q
M3/h		 Head H
m		 NPSH
m		 Efficency
%		 Density=1 Density=1.35 Density=1.84
motor power or model
kw   kw   kw
CZ65-160 A 100 32 3 74 15 Y160M2-2 18.5 Y160L-2 30 Y200L1-2
B 90 32 22 Y180M-2
C 90 24 11 Y160M1-2 15 Y160M2-2 18.5 Y160L-2
D 80 14 5.5 Y132S1-2 7.5 Y132S2-2 11 Y160M1-2
  A 100 54 3.2 73 22 Y180M2-2 30 Y200L1-2 37 Y200L2-2
B 90 50
C 90 40 18.5 Y160L-2 22 Y180M-2 30 Y200L1-2
D 70 30 11 Y160M1-2 15 Y160M2-2 18.5 Y160L-2
CZ65-250 A 115 85 3.4 71 45 Y225M-2 55 Y250M-2
B 115 75
C 100 65 37 Y200L2-2 45 Y225M-2 55 Y250M-2
D 80 50 30 Y200L1-2 30 Y200L1-2 37 Y200L2-2
CZ65-315 A 135 135 5.5 66 90 Y280M-2 110 Y315S-2 160 Y315M2-2
B 130 125
C 115 115 75 Y280S-2 90 Y280M-2 132 Y315M1-2
D 110 110 55 Y250M-2 75 Y280S-2 110 Y315S-2
E 90 85 45 Y225M-2 55 Y250M-2 75 Y280S-2
F 75 70 30 Y200L1-2 45 Y225M-2 55 Y250M-2
CZ80-160 A 170 30 4.2 76 22 Y180M-2 30 Y200L1-2 37 Y200L2-2
B 160 26 18.5 Y160L-2 22 Y180M-2
C 150 22 15 Y160M2-2 18.5 Y160L-2 30 Y200L1-2
D 130 16 11 Y160M1-2 15 Y160M2-2 18.5 Y160L-2
CZ80-200 A 150 50 3.8 79 37 Y200L2-2 45 Y225M-2 55 Y250M-2
B 140 46 30 Y200L1-2 37 Y200L2-2 55 Y250M-2
C 130 38 22 Y180M-2 30 Y200L1-2 37 Y200L2-2
D 110 26 15 Y160M2-2 18.5 Y160L-2 30 Y200L1-2
CZ80-250 A 190 80 5 80 75 Y280S-2 90 Y280M-2 110 Y315S-2
B 180 75 55 Y250M-2 75 Y280S-2 110 Y315S-2
C 170 70 45 Y225M-2 75 Y280S-2 90 Y280M-2
D 150 55 37 Y200L2-2 55 Y250M-2 75 Y280S-2
E 130 47 30 Y200L1-2 37 Y200L2-2 55 Y250M-2
CZ80-315 A 200 130 5.5 76.5 110 Y315S2-2 160 Y315M2-2
B 180 125 132 Y315M1-2
C 160 100 75 Y280S-2 90 Y280M-2 132 Y315M1-2
D 150 75 55 Y250M-2 75 Y280S-2 90 Y280M-2
CZ100-200 A 220 45 4 81 45 Y225M-2 55 Y250M-2 75 Y280S-2
B 200 40 30 Y200L2-2 45 Y225M-2 55 Y250M-2
C 180 30 22 Y180M-2 30 Y200L1-2 45 Y225M-2
D 150 25 37 Y200L1-2
CZ100-250 A 280 75 4.9 81.5 90 Y280M-2 110 Y315S-2 160 Y315M2-2
B 250 70 75 Y280S-2 132 Y315M1-2
C 230 55 55 Y250M-2 75 Y280S-2 110 Y315S-2
D 200 40 37 Y200L2-2 55 Y250M-2 75 Y280S-2
CZ100-315 A 270 135 5.5 75.5 160 Y315M2-2
B 250 130 132 Y315M1-2
C 230 100 110 Y315S-2 132 Y315M1-2
D 200 85 75 Y280S-2 110 Y315S-2 132 Y315M1-2
Model Impeller type speed n=14500r/min
Capacity Q
M3/h		 Head H
m		 NPSH
m		 Efficency
%		 Density=1 Density=1.35 Density=1.35
motor power or model
kw kw kw
CZ32-160 A 11 9 1.5 49 1.1 Y90S-4 1.1 Y90S-4 1.5 Y90L-4
B 10 8
C 9 7 1.1 Y90S-4
D 6 5
E 6 3
CZ32-200 A 10 13 1 47 1.5 Y90L-4 1.5 Y90L-4 2.2 Y100L1-4
B 9 12 1.5 Y90L-4
C 8 10
D 8 8
CZ32-250 A 11 20 0.9 37 2.2 Y100L1-4 3 Y100L2-4 4 Y112M-4
B 10 19
C 9 15 2.2 Y100L1-4 3 Y100L2-4
D 8 11 2.2 Y100L1-4
CZ40-160 A 15 8 0.5 60 1.1 Y90S-4 1.1 Y90S-4 1.5 Y90L-4
B 15 7
C 14 6 1.1 Y90S-4
D 12 4
CZ40-200 A 16 13 1.1 57 1.5 Y90L-4 1.5 Y90L-4 2.2 Y100L1-4
B 15 12 1.1 Y90S-4
C 14 9 1.1 Y90S-4 1.5 Y90L-4
D 12 7 1.1 Y90S-4
1
CZ40-250 A 20 21 2.5 48 4 Y112M-4 5.5 Y132S-4 5.5 Y132S-4
B 18 20 3 Y100L2-4 4 Y112M-4
C 16 15 2.2 Y100L1-4 3 Y100L2-4 4 Y112M-4
D 13 12 2.2 Y100L1-4 2.2 Y100L1-
CZ40-315 A 22 36 1 45 11 Y160M-4 11 Y160M-4 11 Y160M-4
B 22 32 5.5 Y132S-4
C 20 24 4 Y112M-4 5.5 Y132S-4
D 18 18 4 Y112M-4 5.5 Y132S-4
CZ50-160 A 30 8 1.6 70 1.5 Y90L-4 2.2 Y100L1-4 3 Y100L2-4
B 26 7 1.1 Y90S-4 1.5 Y90L-4 2.2 Y100L1-4
C 24 6 1.1 Y90S-4 1.5 Y90L-4
D 20 4 1.1 Y90S-4
CZ50-200 A 34 14 1.5 70 3 Y100L2-4 4 Y100L2-4 5.5 Y132S-4
B 32 12 2.2 Y100L1-4 3 Y100L2-4 4 Y112M-4
C 30 10 1.5 Y90L-4 2.2 Y100L1-4 3 Y100L2-4
D 24 7 1.5 Y90L-4 2.2 Y100L1-4
CZ50-250 A 34 21 1.1 59 5.5 Y132S-4 5.5 Y132S-4 11 Y160M-4
B 30 20 4 Y112M-4
C 26 16 3 Y100L2-4 4 Y112M-4 5.5 Y132S-4
D 24 12 2.2 Y100L1-4 3 Y100L2-4 4 Y112M-4
Model Impeller type speed n=14500r/min
Capacity Q
M3/h		 Head H
m		 NPSH
m		 Efficency
%		 Density=1 Density=1.35 Density=1.35
motor power or model
kw kw kw
CZ50-315 A 42 36 1.8 58 11 Y160M-4 11 Y160M-4 15 Y160L-4
B 42 32
C 40 26 11 Y160M-4
D 36 20
CZ65-160 A 50 8 1.5 68 2.2 Y100L1-4 3 Y100L2-4 4 Y112M-4
B 48 7
C 46 6 2.2 Y100L1-4 3 Y100L2-4
D 38 4
  A 50 13 1 73 4 Y112M-4 4 Y112M-4 5.5 Y132S-4
B 46 12 3 Y100L2-4
C 42 10 3 Y100L2-4 4 Y112M-4
D 36 7 2.2 Y100L1-4 2.2 Y100L1-4 3 Y100L2-4
CZ65-250 A 54 21 0.9 67 11 Y160M-4 11 Y160M-4 11 Y160M-4
B 50 20 5.5 Y132S-4
C 46 16 4 Y112M-4 5.5 Y132S-4
D 40 10 4 Y112M-4 5.5 Y132S-4
CZ65-315 A 64 32 1.3 62 11 Y160M-4 15 Y160L-4 18.5 Y180M-4
B 61 30
C 56 28 11 Y160M-4 15 Y160L-4
D 54 24
E 50 20 5.5 Y132S-4 11 Y160M-4
F 52 16 5.5 Y132S-4
CZ80-160 A 75 8 2.2 70 3 Y100L2-4 4 Y112M-4 5.5 Y132S-4
B 70 7 3 Y100L2-4 4 Y112m-4
C 70 5 2.2 Y100L1-4
D 65 4 2.2 Y100L1-4 2.2 Y100L1-4
CZ80-200 A 80 12 1.9 73 5.5 Y132S-4 11 Y160M-4 11 Y160M-4
B 75 11 4 Y112M-4 5.5 Y132S-4
C 65 9 3 Y100L2-4 4 Y112M-4 5.5 Y132S-4
D 60 6 3 Y100L2-4 4 Y112M-4
CZ80-250 A 90 20 1.3 78 11 Y160M-4 11 Y160M-4 15 Y160L-4
B 90 19
C 85 17
D 75 14 5.5 Y132S-4 11 Y160M-4
E 70 11 5.5 Y132S-4
CZ80-315 A 100 32 1.3 72.5 15 Y160L-4 18.5 Y180M-4 30 Y200L-4
B 95 30
C 85 24 15 Y160L-4 18.5 Y180M-4
D 70 18 15 Y160L-4
CZ80-400 A 105 52 1.2 63 30 Y200L-4 37 Y225S-4 55 Y250M-4
B 100 50 55 Y250M-4
C 90 44 30 Y200L-4 45 Y225M-4
D 80 38 18.5 Y180M-4 37 Y225S-4
E 75 30 18.5 Y180M-4 30 Y200L-4
Model Impeller type speed n=14500r/min
Capacity Q
M3/h		 Head H
m		 NPSH
m		 Efficency
%		 Density=1 Density=1.35 Density=1.35
motor power or model
kw - kw - kw -
CZ100-200 A 115 11 1.2 80 5.5 Y132S-4 11 Y160M-4 11 Y160M-4
B 100 10
C 90 8 5.5 Y132S-4 5.5 Y132S-4
D 80 6
CZ100-250 A 130 20 1.2 75.5 15 Y160L-4 30 Y200L-4 30 Y200L-4
B 130 18 11 Y160M-4 15 Y160L-4
C 120 14 11 Y160M-4 15 Y160L-4
D 100 10 11 Y160M-4
CZ100-315 A 132 32 1.5 72 30 Y200L-4 30 Y200L-4 37 Y225S-4
B 120 30 18.5 Y180M-4 30 Y200L-4
C 100 26 15 Y160L-4 15 Y160L-4
D 90 21 18.5 Y180M-4
CZ10-400 A 150 50 2 70 45 Y225M-4 45 Y225M-4 75 Y280S-4
B 140 48 30 Y200L-4 55 Y250M-4
C 120 40 30 Y200L-4 45 Y225M-4
D 100 30 18.5 Y180M-4 30 Y200L-4
CZ125-250 A 200 20 2.2 84 18.5 Y180M-4 22 Y180L-4 30 Y200L-4
B 200 18 15 Y160L-4 18.5 Y180M-4 33 Y200L-4
C 190 14 11 Y160M-4 15 Y160M-4 22 Y180L-4
D 160 10 11 Y160M-4 15 Y160L-4
CZ125-315 A 200 30 2 79 30 Y200L-4 37 Y225S-4 45 Y225M-4
B 180 30 30 Y200L-4 37 Y225S-4
C 170 24 18.5 Y180M-4 30 Y200L-4
D 100 18 15 Y160L-4 18.5 Y180M-4
CZ125-400 A 220 50 2.2 74.5 55 Y250M-4 75 Y280S-4 90 Y280M-4
B 200 48 45 Y225M-4 75 Y280S-4 75 Y280S-4
C 180 46 37 Y225S-4 55 Y250M-4 75 Y280S-4
D 170 42 30 Y200L-4 45 Y225M-4 55 Y250M-4
E 150 36 30 Y200L-4 45 Y225M-4
F 150 30 37 Y225S-4
CZ150-250 A 320 17 3.5 83 22 Y180L-4 30 Y200L-4 37 Y225S-4
B 300 15 18.5 Y180M-4
C 280 13
D 260 12 15 Y160L-4 18.5 Y180M-4 30 Y220L-4
E 240 11 11 Y160M-4 15 Y160L-4 22 Y180L-4
CZ150-315 A 380 30 3 82.5 45 Y225M-4 75 Y280S-4 - -
B 340 26 37 Y225S-4 45 Y225M-4 - -
C 320 20 30 Y200L-4 37 Y225S-4 55 Y250M-4
D 300 17 22 Y180L-4 30 Y200L-4 37 Y225S-4
CZ150-400 A 400 48 4.3 80 75 Y280S-4 110 Y315S-4 - -
B 340 40 55 Y250M-4 75 Y280S-4 - -
C 300 34 45 Y225M-4 90 Y280S-4
D 260 28 37 Y225S-4 45 Y225M-4 75 Y280M-4
Model Impeller type speed n=14500r/min
Capacity Q
M3/h		 Head H
m		 NPSH
m		 Efficency
%		 Density=1 Density=1.35 Density=1.35
motor power or model
kw - kw - kw -
CZ150-500 A 420 80 2.5 78 132 Y315M1-4 - - - -
B 400 70 110 Y315S-4 160 Y315M2-4 - -
C 360 65 132 Y315M1-4 - -
D 340 50 75 Y280S-4 110 Y315S-4 132 Y315M1-4
E 300 45 55 Y225M-4 75 Y280S-4 110 Y315S-4
- - - - - - - - - - -
CZ200-250 A 600 12 3.5 85 30 Y200L-4 37 Y225S-4 55 Y250M-4
B 540 11 22 Y180L-4 30 Y200L-4 45 Y225M-4
C 500 10 37 Y225S-4
CZ200-315 A 650 24 4 83.5 55 Y250M-4 75 Y280S-4 100 Y315S-4
B 600 20 90 Y280M-4
C 550 16 37 Y225S-4 45 Y225M-4 75 Y280S-4
D 500 13 30 Y200L-4 37 Y225S-4 55 Y250M-4
CZ200-400 A 650 52 3.5 84 132 Y315M1-4 - - - -
B 550 45 90 Y280M-4 132 Y315M1-4 - -
C 500 40 75 Y280S-4 110 Y315S-4 160 Y315M2-4
D 450 30 55 Y250M-4 75 Y280S-4 110 Y315S-4
CZ200-500 A 700 75 3 81.5 - - - - - -
B 650 65 160 Y315M2-4 - - - -
C 550 55 110 Y250M-4 160 Y315M2-4 - -
D 450 40 75 Y280S-4 110 Y315S-4 132 Y315M1-4
CZ250-315 A 950 22 5 86 75 Y280S-4 110 Y315S-4 160 Y315M2-4
B 900 20 90 Y280M-4 132 Y315M1-4
C 800 16 55 Y250M-4 75 Y280S-4 110 Y315S-4
D - - - - - - - -
CZ250-400 A 1000 44 6 83 160 Y315M2-4 - - - -
B 900 38 132 Y315M1-4 - - - -
C 850 30 110 Y315S-4 160 Y315M2-4 - -
D 800 24 90 Y280M-4 110 Y315S-4 160 Y315M2-4
CZ250-500 A 1200 80 6 85 - - - - - -
B 1100 70 - - - - - -
C 1000 55 - - - - - -
D 850 45 160 Y315M2-4 - - - -
CZ300-400 A 1500 40 6 87 - - - - - -
B 1400 30 160 Y315M2-4 - - - -
C 1300 25 132 Y315M1-4 - - - -
D 1300 20 110 Y315S-4 160 Y315M2-4 - -
CZ300-500 A 1700 70 6 83.5 - - - - - -
B 1500 60 - - - - - -
C 1300 50 - - - - - -
D 1100 40 - - - - - -

Standard Chemical Pump Related Products

Next:Urea Pump

Catalog:Chemical Pumps

Above:Stainless Steel Corrosion-Resistant Pump
