Non Rising Stem Resilient Seated Gate Valves

Summary

The valves disc is rubber-packed to get excellent sealing effect by the rubber's resilient deformation. Non-rising resilient seated gate valves solve the problem in general gate valves such as leakage, rusting etc. and saves installation space. It is used widely in tap water industry, sewage treatment, shipping construction, petroleum, chemicals, food, pharmacy, textile, electric power, metallurgy and energy system's pipeline to adjust and shut off fluids.

Technical Parameters

Nominal pressure: 1.0-2.5Mpa
Working temp.:0-120°C
Flanged end: GB/T17241.6 GB9113
Nominal diameter: 50-400mm
Service: water, Sewage, oils, gas etc.
Inspection and test: API 598

Supplier: Saitai Valve, China
Manufacturer: Shop in Shanghai Qingpu Industrial Park

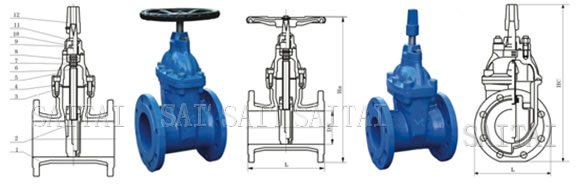

Non rising stem resilient seated gate valves

Materials

Serial no.	part	material
1	Body	Grey cast iron, ductile cast iron, cast steel
2	Disc	Ductile cast iron packed with rubber or EDPM outside
3	Bolt	Carbonized treatment
4	Gasket	Buna-N rubber or EDPM
5	Cover	Grey cast iron, ductile cast iron, cast steel
6	Stem	stainless steel
7	O-ring	Buna-N rubber or EPDM
8	Thrust bearing	Gun metals
9	Bolt	Stainless steel
10	Gland	ductile cast iron, cast steel
11	Dust proof gasket	Buna-N rubber
12	Hand wheel(transmission cap)	Cast iron

Dimensions

DN	50	65	80	100	125	150	200	250	300	350	400	450	500	600
L	178	190	203	229	254	267	292	330	356	381	406	432	457	508
H (min)(full close)	313	332	372	424	497	562	680	837	948	1010	1220	1280	1480	1665
H (max)(full open)	355	375	415	476	540	600	720	875	990	1050	1245	1310	1560	1750
